System EL

Lip-Seal-Ring | Ø 110-630 mm

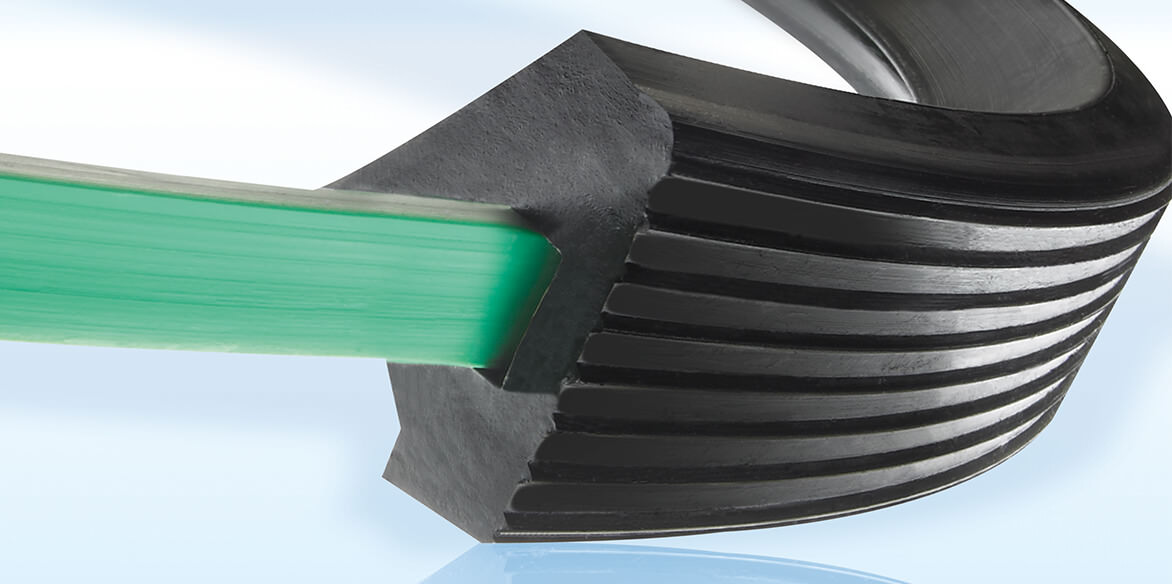

The SYSTEM EL lip seal ring with reinforcing ring (PP) is developed for pipes and fittings made of PVC/PP (DIN 19534, EN 1401-1, EN 1852). SYSTEM EL seals fit firmly into the socket due to the reinforcing ring. The favourable ring geometry combined with a soft rubber quality (40±5 IRHD) results in lower connecting forces and excellent tightness.

SYSTEM EL seals are also suitable as a fixed seal in other pipe systems, for example cable protection pipes etc. (socket dimensions as recommended by M.O.L.) M.O.L. SYSTEM EL seals meet the requirements of DIN EN 681-1 WC. The quality is regularly monitored by: MPA NRW Dortmund, KIWA KOMO.

Datasheet

Technical Datasheet

Lip seal ring with reinforcing ring (PP)

Integral seal with firm fit of the sealing ring in the socket

Excellent connecting properties, the connection forces are very low, even non-chamfered pipes can be connected easily

The leak tightness required by EN 1277 under positive and negativepressure is exceeded by far

The seal is not pushed out when the pipes are laid

The outstanding elasticity of the rubber seal ensures a durable sealing effect

External monitoring by the MPA-NRW/KIWA KOMO

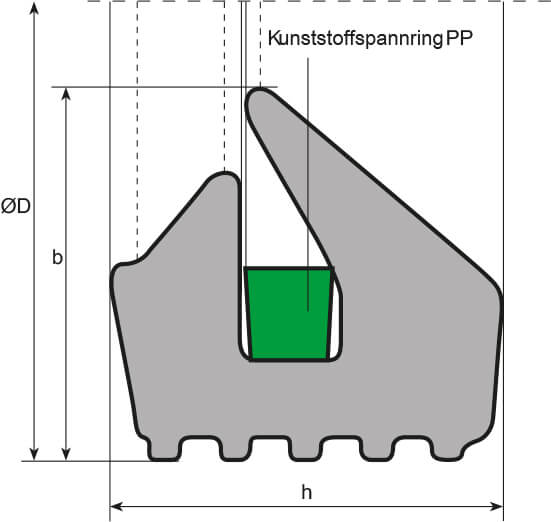

Art.-Nr.	DN	DIAM	Ø D	b	h
Art.-Nr.	DN	DIAM	Ø D	b	h
60150	100	110	123,2 ± 0,7	8,5 ± 0,2	9,1 ± 0,2
60152	125	125	140,2 ± 0,8	9,5 ± 0,2	10,3 ± 0,3
60154	150	160	177,2 ± 0,8	10,4 ± 0,3	11,5 ± 0,3
60156	200	200	218,0 ± 1,0	12,5 ± 0,3	13,1 ± 0,3
60158	250	250	277,0 ± 2,0	18,0 ± 0,6	21,0 ± 0,6
60160	300	315	343,0 ± 2,0	19,6 ± 0,6	22,5 ± 0,6
60162	400	400	434,1 ± 3,0	22,5 ± 0,8	26,0 ± 0,8
60164	500	500	541,3 ± 3,5	27,4 ± 1,0	34,6 ± 1,0
60166	600	630	679,6 ± 4,0	32,8 ± 1,2	41,0 ± 1,2
